Custom Boat Parts CAD Design and CAM Services

Welcome to Rijnieks CAD design and CAM services, your go-to provider for custom boat parts using advanced CAD design and CAM techniques. I specialize in creating high-quality components, such as the Elliott 6m boat mast base, to meet your specific marine engineering needs.

My Services

Projects

Elliott 6m Mast Base V2 Black

HSS sailing club in Helsinki, Finland owns six Elliott 6m boats and three of them had a broken mast base. They reached out to me for a solution. Now they have all six Elliott 6m boats ready to race again! The new Elliott 6m mast base was CAD-designed based on the original measurements and CNC-milled from 6061 aluminium. It was beadblasted and hardcoat-anodized in the post-processing phase. It features M6 threads in the cylindrical part and M5 threads on the front for securing the sheave axes.

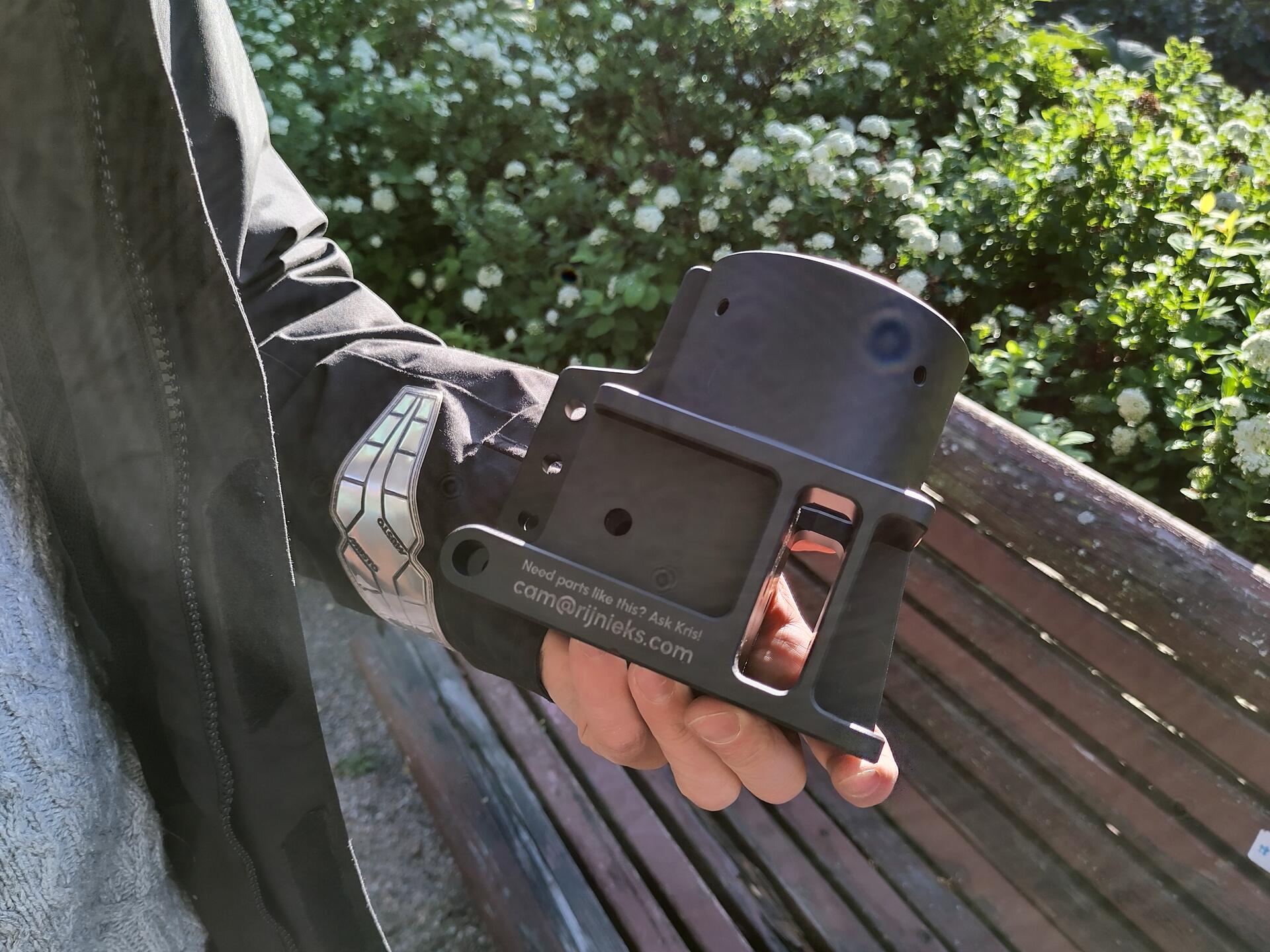

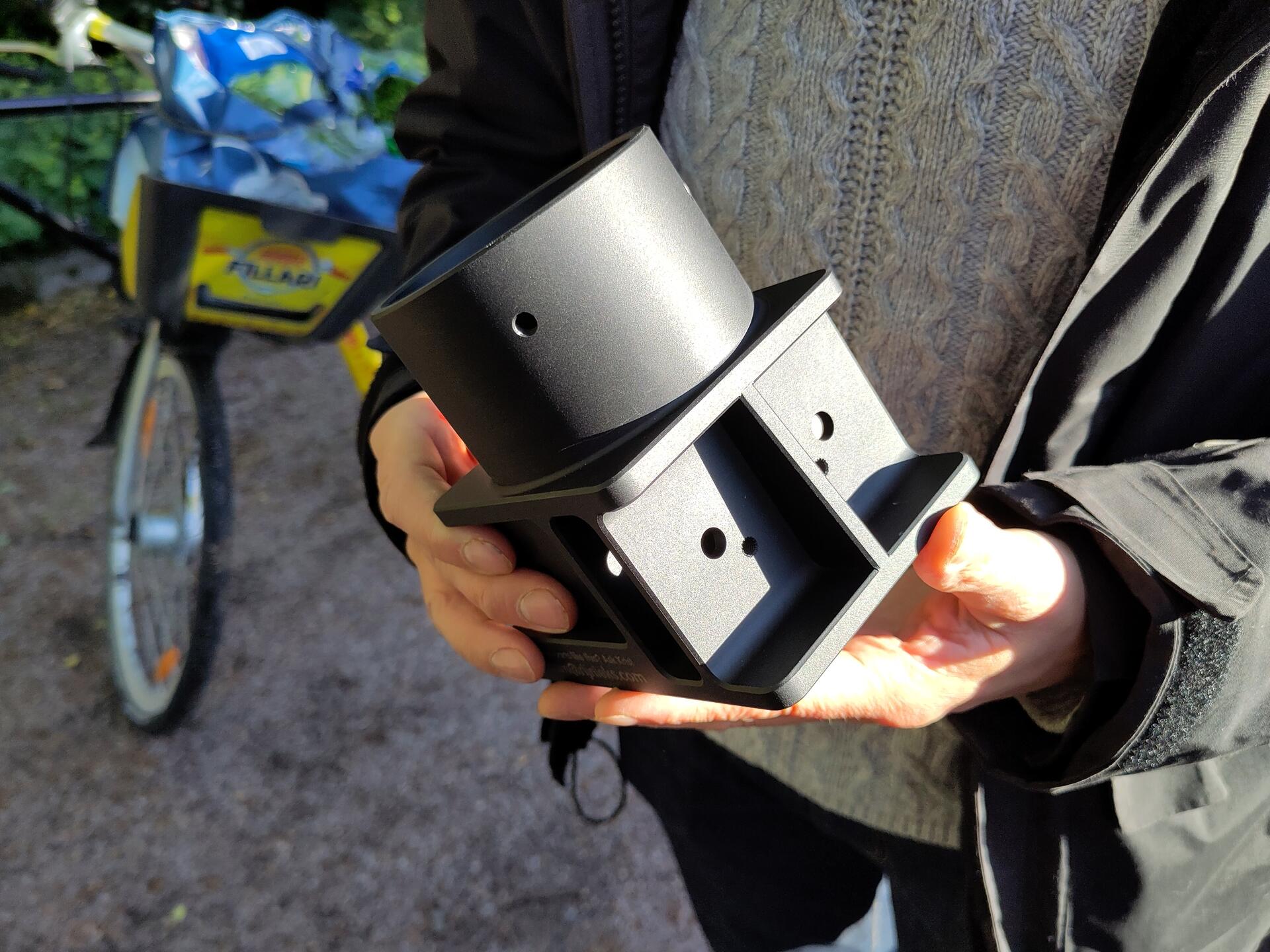

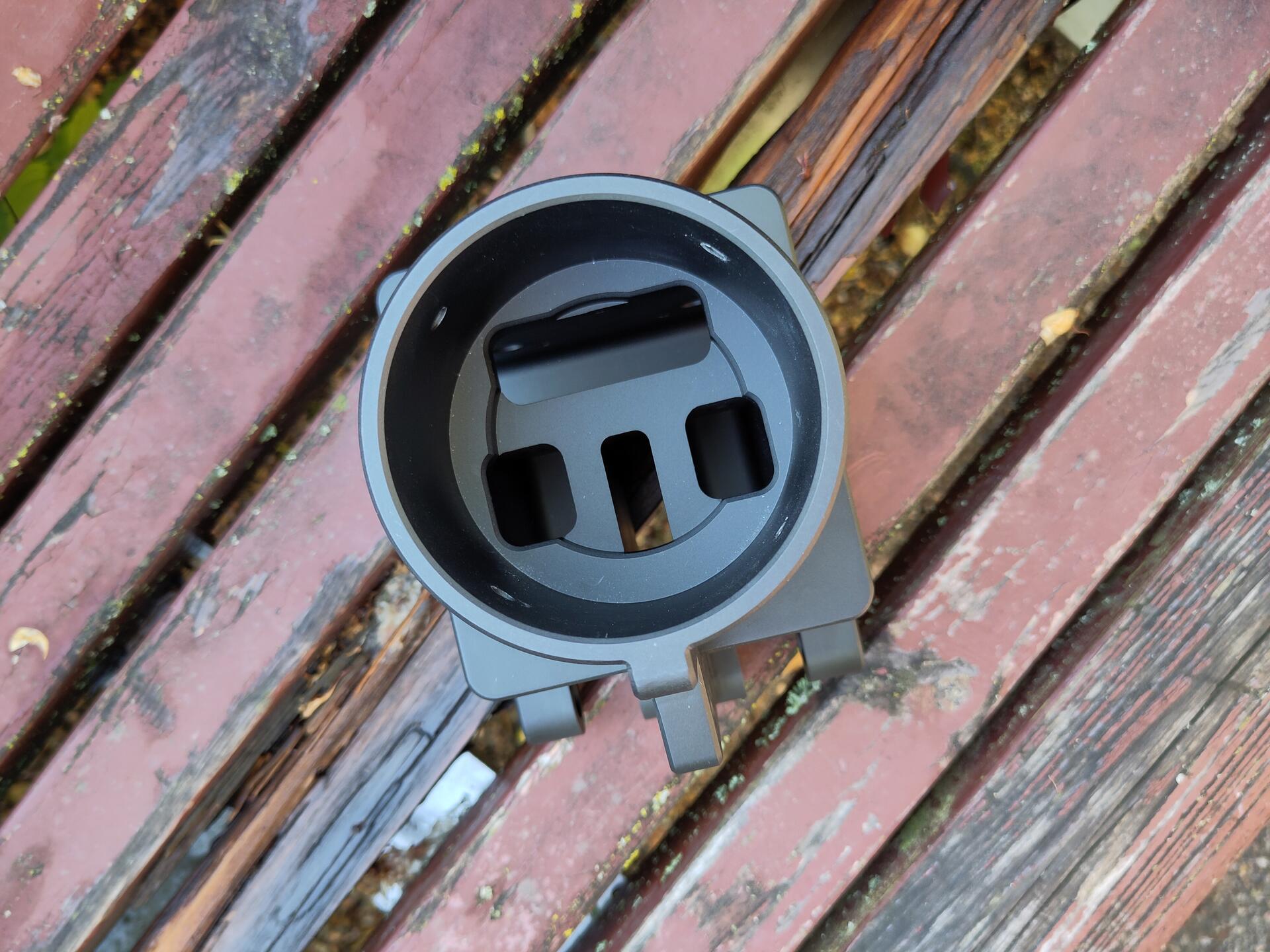

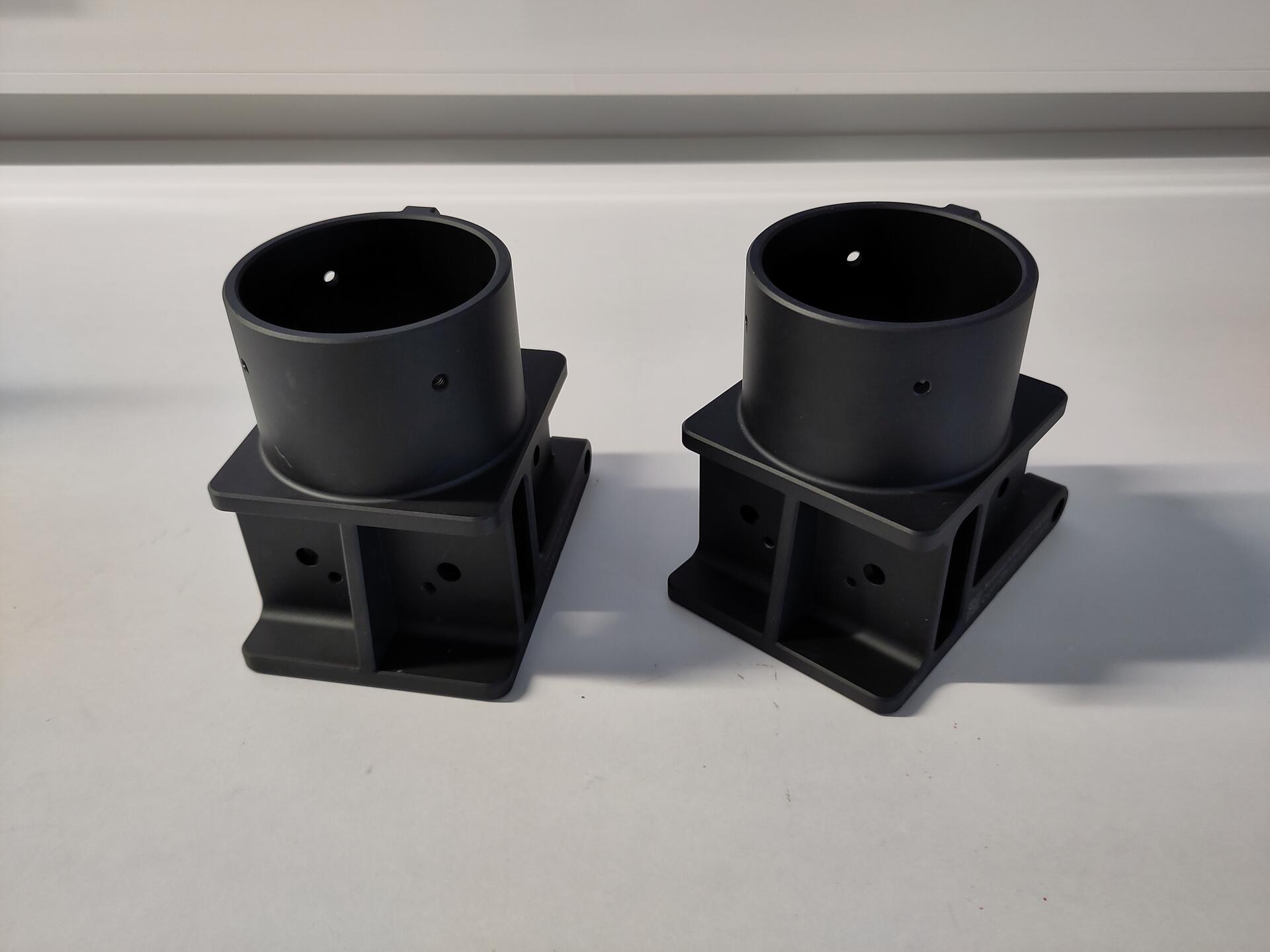

A photo of two Elliot mast bases, black on a white background A photo of an Elliot mast base in a hand of a human, with park in the background A photo of an Elliot mast base in a hand of a human, with an Alepa bike in the background A photo of an Elliot mast base from top

Elliott 6m Mast Base V1 Pink

An earlier version of the Elliott 6m mast base for the HSS sailing club in Helsinki. CAD-designed based on the original mast base measurements, anodized with pink matte finish. All threads are M6 and the first racing attempt with the fitted boat was a winning one.

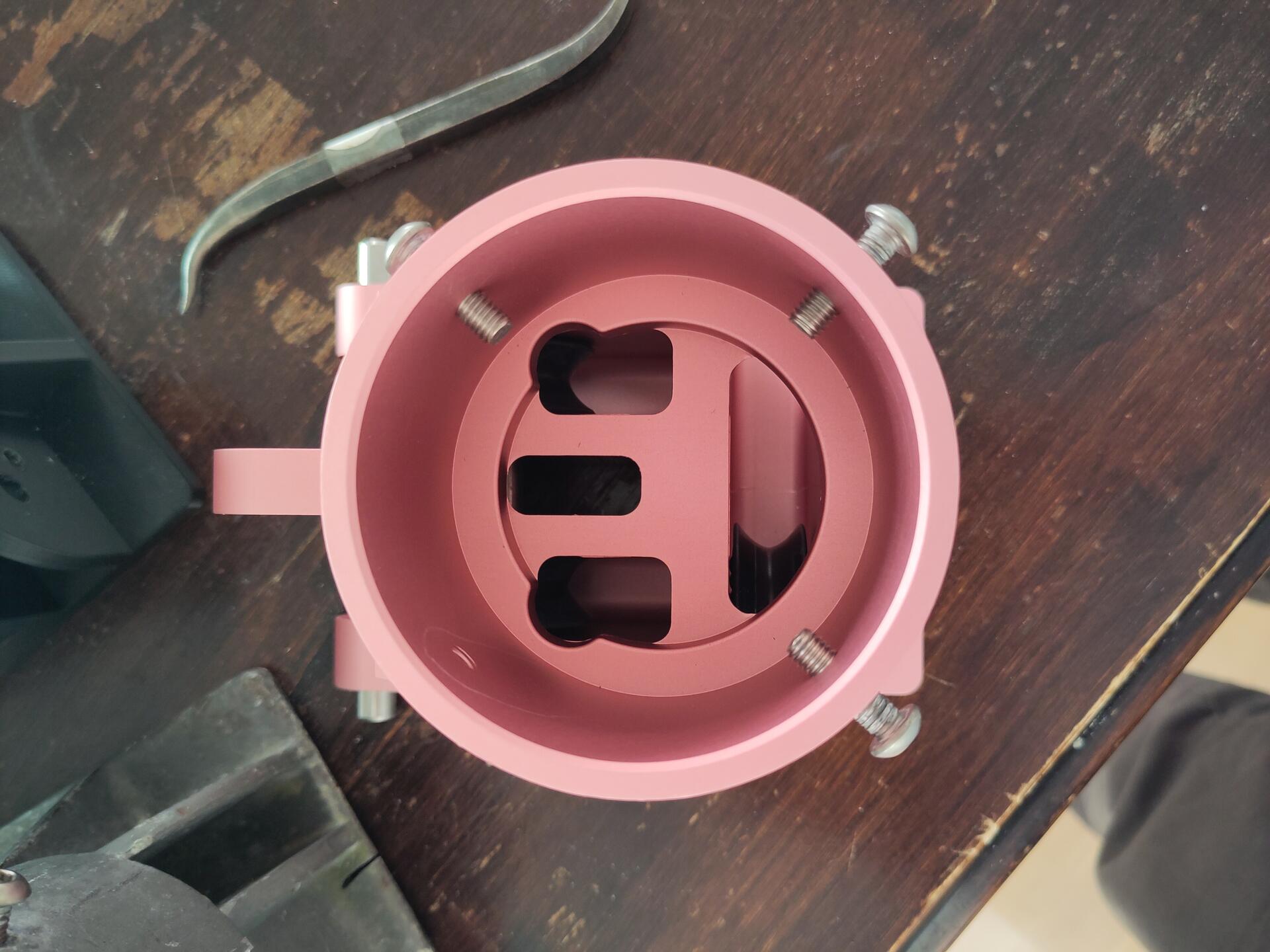

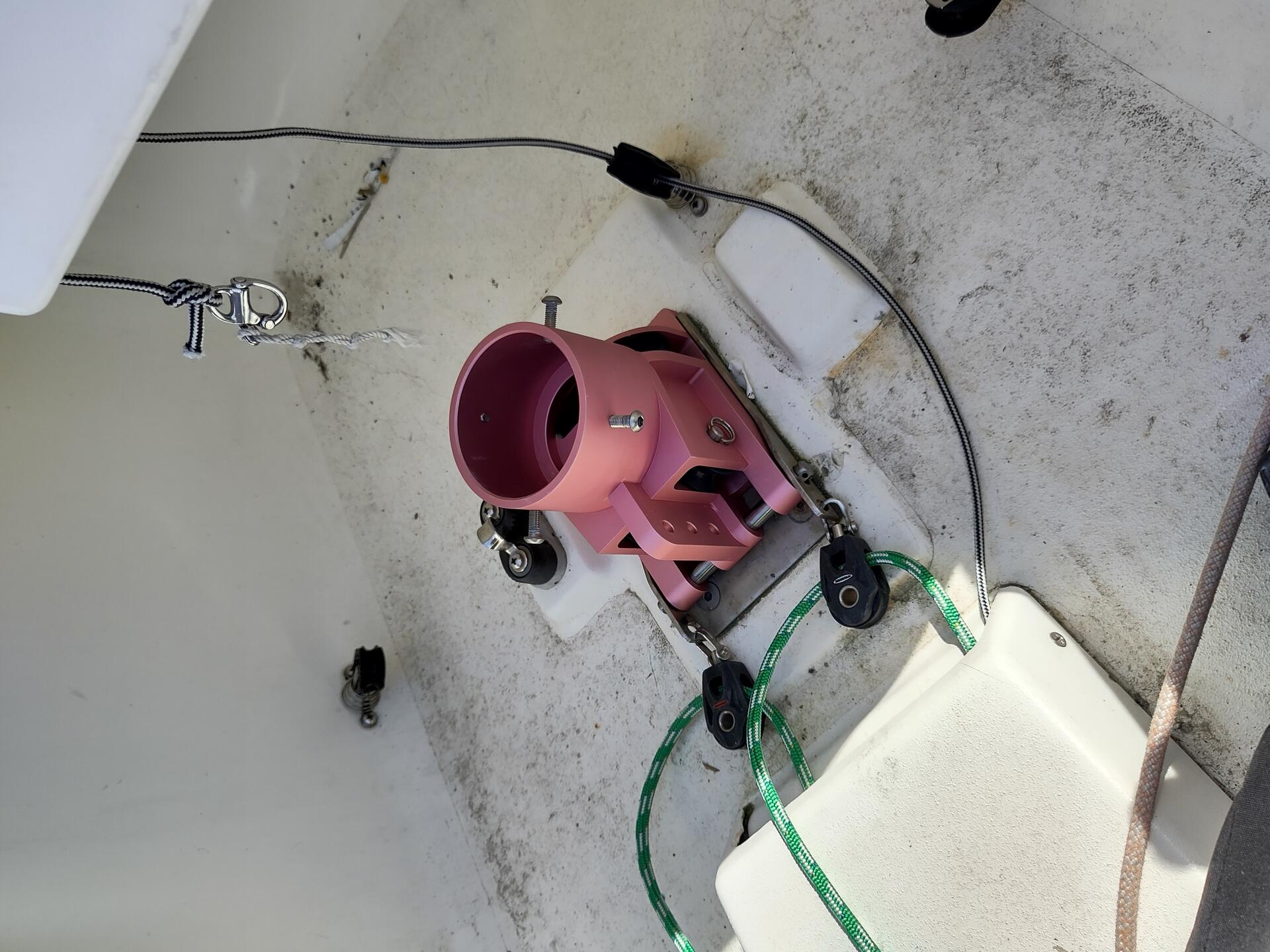

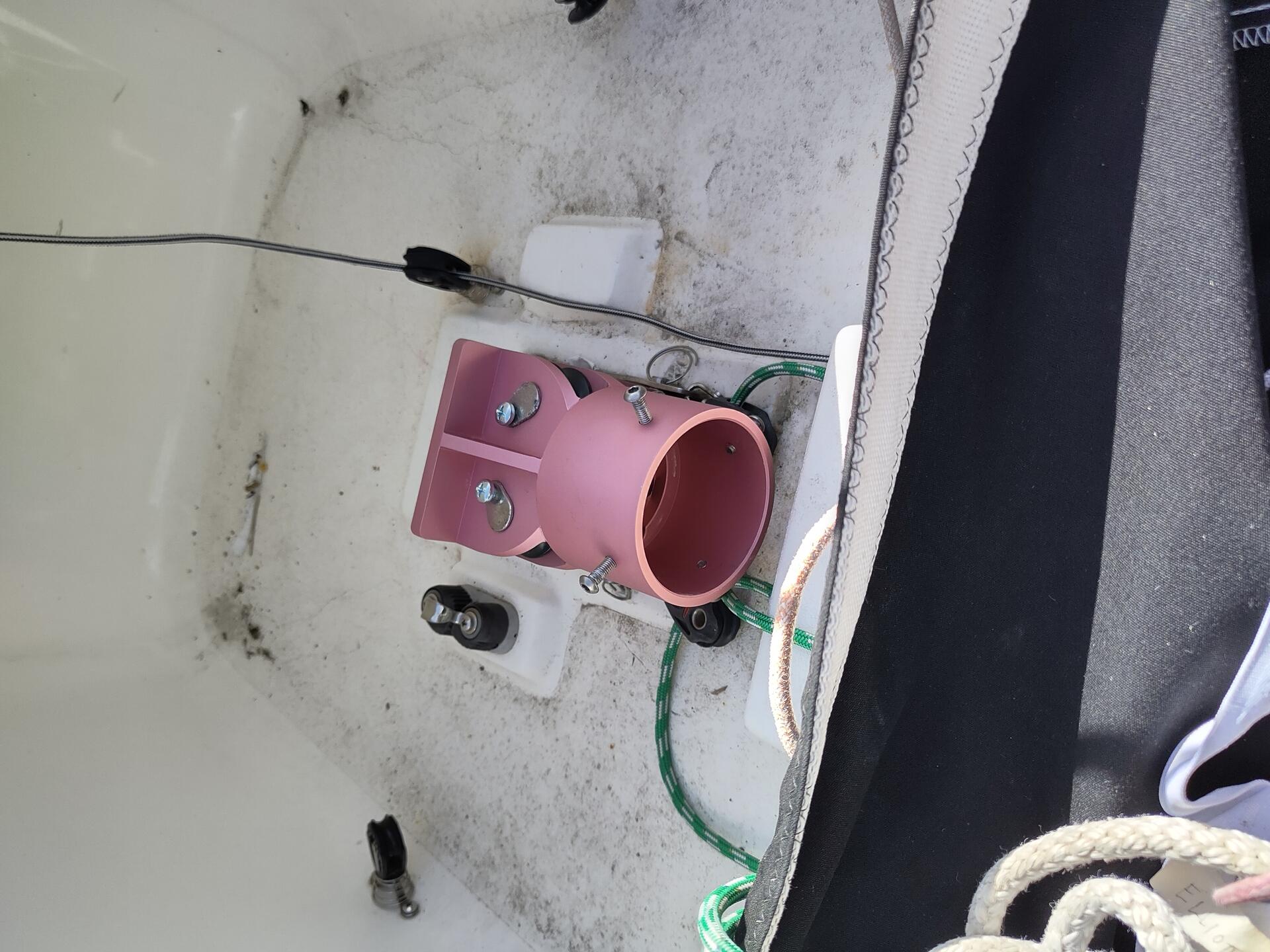

A photo of the pink Elliott mast base together with the broken original and a 3D-printed fitting test version A photo of the pink Elliott mast base from top A photo of the pink Elliott mast base fitted on the mast on a sunny day A photo of the pink Elliott mast base fitted to the base structure in the Elliott 6m boat A photo of the pink Elliott mast base hinge being tested in the Elliott 6m mast base fitting A photo of the pink Elliott mast base together with the broken original and a 3D-printed fitting test version

Contact

Do you need complex parts for your boat, bike or vintage vinyl record player? The original manufacturer does not make them anymore? Let's talk!

Email: cam@rijnieks.com
